Aviso: Daikin’s 5th generation VRV Heat Recovery drives decarbonization

Press Release, March 2022

Daikin reveals more details on its VRV 5 Heat Recovery launch in July, 2022: Besides convincing features of unparalleled simplicity and flexibility in design and installation, the latest evolution of the Variable Refrigerant Volume (VRV) technology which was first developed by Daikin 40 years ago, provides new opportunities for reducing the carbon footprint of commercial buildings and the direct and indirect environmental impact.

Lower direct and indirect emissions

Vienna, March 2022 – To drive the decarbonisation of buildings forward, generally, new systems should reduce both direct and indirect CO2 equivalents. Daikin has focussed on maximising operational efficiency in real life conditions and thereby minimising the environmental impact: The new solution features a market-leading seasonal efficiency, with a 13 % increase in performance compared to the previous generation.


Go to the VRV 5 online designer seminar to see more details

Additionally, Daikin’s highly efficient 3-pipe heat recovery system, which allows simultaneous cooling and heating, delivers individual comfort control as well as maximum flexibility by transferring heat from areas requiring cooling to those that need to reach higher temperatures.

Moreover, Daikin’s VRV system boosts its efficiency as no energy consuming pumps are used and only two steps of energy transfer are needed: From air to refrigerant and from refrigerant back to air which helps to minimise energy losses and increases overall system efficiency.

To also greatly reduce the system’s potential direct impact, VRV 5 Heat Recovery has been built specifically for the lower Global Warming Potential (GWP) refrigerant R-32. Not only does R-32 carry heat more effectively than R-410A, allowing a lower refrigerant charge, it also has a lower GWP. Together, this leads to a reduction of the system’s potential direct CO2 equivalent emissions of up to 71 %. As R-32 is a single component refrigerant, it is easy to recover and reclaim and thereby supports Daikin’s circular economy initiative L∞p by Daikin.

This combination of performance improvements and state-of-the-art technologies means that VRV 5 Heat Recovery is the ideal solution for projects where lower environmental impact is a priority and BREEM, LEED or WELL certification are a set goal.


Benefits of flexible and efficient installation for any commercial building

  • With its best-in-class design and installation versatility VRV 5 systems are suitable for a wide variety of buildings and locations.
  • The temperature operation ranges of up to +46°C in cooling and down to -20°C in heating.
  • It can deliver an external static pressure (ESP) of up to 78 Pascals (Pa) so the unit can be installed with ducting to the exterior, in small spaces or behind grilles.
  • Five low sound steps down to 40 db(A) in sound pressure allow installations in accordance with urban planning requirements, while enhancing comfort levels.
  • VRV 5 Heat Recovery offers the same long piping runs as the current VRV range and even smaller pipe diameters, further reducing the required installation space.
  • It offers the widest outdoor unit range on the market, with heating capacities up to 90kW.
  • And with the inclusion of Daikin’s Shîrudo Technology it can be used also for small rooms and spaces.
  • Moreover, the installation of VRV 5 Heat Recovery is fast and easy. Thanks to the flow through connection of the BSSV boxes, the number of brazing points are reduced as well as the quantity of refrigerant branch kits required.

Peace-of-mind during operation and service

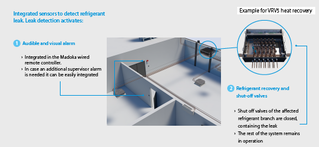

The integrated Shîrudo Technology provides the versatility to accurately control the indoor climate of any room or surface without any additional considerations, field supplied equipment or time-consuming studies. With the factory-integrated refrigerant response measures and easy validation via the Xpress software, Daikin guarantees compliance with the specific IEC product standard. In the unlikely event of a refrigerant leak, it is immediately detected and the affected part of the installation is isolated. This minimises the refrigerant that can leak and means only the units in the affected part of the system will be shut down, while the rest remains in operation.


Compatible with smart indoor units and control all-in-one

VRV 5 Heat Recovery can be combined with a contemporary range of specially designed R-32 optimised indoor units, offering maximum flexibility for all room configurations. Ventilation units can be integrated to further improve the Indoor Air Quality and create a healthier indoor environment.

User-friendly and intuitive controllers ensure the system runs in the most comfortable and efficient way. Daikin’s mini BMS, the intelligent Touch Manager, easily integrates climate control and third party equipment into one system. Providing both local and cloud-based access, building managers can control the system from any location via touchscreen, Intranet or Internet.


For consultants and installers of VRV 5 Heat Recovery Daikin offers a variety of supporting tools like BIM objects and floorplan-based software to ease the system design and selection or the full project and technical support provided by an expert team.

George Dimou, VRV systems product manager at Daikin said: “There has never been a greater focus on supporting the decarbonisation of buildings and the HVAC-R market has an important role to play. It is up to all of us to apply available solutions, such as the VRV 5 Heat Recovery, and our expert teams are ready to support the building and installation industry to take action now.”


Daikin VRV 5 Heat Recovery units will be available from July 2022.

For more information visit

Go to the VRV 5 designer Seminar to hear more details

Pictures: Copyrights Daikin Europe
